CTS Flange Adapter Installation

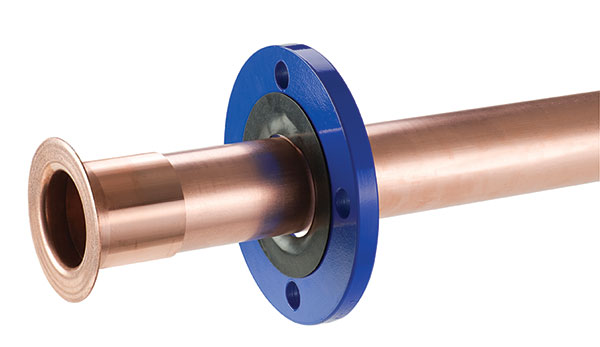

Step 1: Place CTS FLANGE over tube

Step 2: Attach CTS FLANGE adapter

Step 3: Braze / Solder CTS FLANGE adapter

Step 4: Install a suitable isolating gasket between adapter and equipment. Rotate CTS FLANGE to align bolt holes and tighten.

The CTS Flange Adapter saves time and money on the construction site. Being very easy and quick to install the fitting provides 100% protection against electrolysis (with a suitable isolating gasket installed) and in addition to saving labour costs also saves on consumables – gas, flux, etc.

  • Installation of CTS Flanges is simple, quick and effective. The failsafe method ensures correct installation every time.
  • The unique CTS Electrolysis EPDM Insulator ensures long life and 100% electrolysis protection.
  • The CTS Flange Range is comprehensive and together with Copper Component Flange selection will suit all piping / joining applications.

Install Notes:

  • The steel flange should be 15″ from the heat source to elimiate any chance of burning the rubber electrolysis insulator
  • Tighten Bolts in correct torque tightening sequence
  • CTS Flanges do not ship with Bolt and Gasket kits. Bolt and Gasket kits are available separately
