DIMENSIONS OF ROLL GROOVED CTS COPPER COMPANION FLANGE ADAPTER
Gasket Seat
Groove Width
Groove Diagram
Max Allow Flare
Overall Length
Thickness Min
1.0 Min
Od of Flange
Size
(A) +/-03
(B)=/-03
(c)=00 02
DIA
(K)
(T)
(0)
(L)
2″
0.610
0.300
2.029
2.22
2.63
0.059
1.94
3.70
2-1/2″
0.610
0.300
2.525
2.79
2.79
0.067
2.42
4.20
3″
0.610
0.300
3.025
3.12
3.12
0.075
2.89
5.00
4″
0.610
0.300
4.019
3.62
3.62
0.096
3.84
6.20
5″
0.610
0.300
5.019
3.82
3.82
0.111
4.70
7.30
6″
0.610
0.300
5.999
4.27
4.27
0.124
5.72
8.40
Drilling to Match ANSI B 16.5
Features
Sizes 2″ thru 6″.

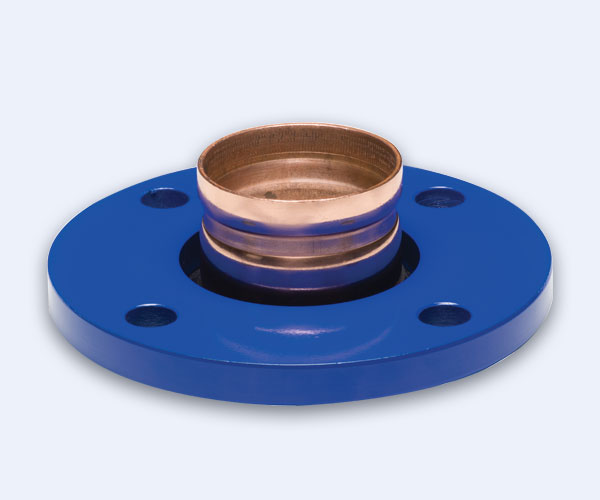

Flanges shall be drilled to ANSI B 16.5 150/125 Standard powder coated with a EPDM insulator adhered to the plate steel flange protruding inside of the steel flange to prevent contact with the Copper Companion Flange Adapter.
