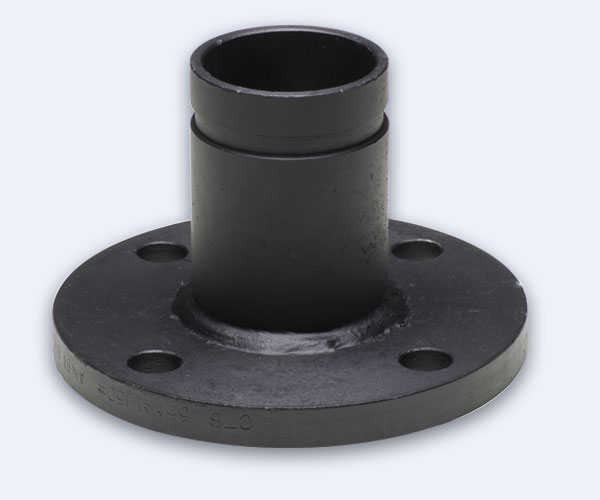

CTS Black Steel Flange 150lb

Posted on by webmaster-tangent — No Comments ↓
Submittal / Data Sheet
CTS Black Steel Flange 150lb Spec Data Sheet

Specifications

Size Code Working Pressure
(at atmospheric)		 Material Thickness
2″ BSRG002 450 PSI Plate Steel .625
2-1/2″ BSRG025 450 PSI Plate Steel .625
3″ BSRG003 450 PSI Plate Steel .625
4″ BSRG004 450 PSI Plate Steel .700
5″ BSRG005 450 PSI Plate Steel .750
6″ BSRG006 450 PSI Plate Steel .860
8″ BSRG008 450 PSI Plate Steel .860

Size Outside Diameter Gasket Seat
(A)		 Groove Width
(B)		 Groove Diameter
(C)		 Wall Thickness
(T)		 Length
(L)
2″ 2.375 0.625 0.344 2.235 – 2.250 0.15 4.57
2-1/2″ 2.875 0.625 0.344 2.702 – 2.720 0.20 4.57
3″ 2.35 0.625 0.344 3.325 – 3.344 0.21 4.57
4″ 2.81 0.625 0.344 4.314 – 4.334 0.23 6.70
5″ 3.87 0.625 0.344 5.373 – 5.395 0.26 6.70
6″ 4.31 0.62 0.344 6.433 – 6.455 0.28 6.70
8″ 4.31 0.750 0.469 8.416 – 8.441 0.32 6.70

CTS Black Steel Flange for all grooved HVAC systems
